AlphaScan
AI-powered metrology-grade 3D scanner featuring high precision, high speed, and exceptional stability—delivering rapid and accurate acquisition of an object's 3D data.

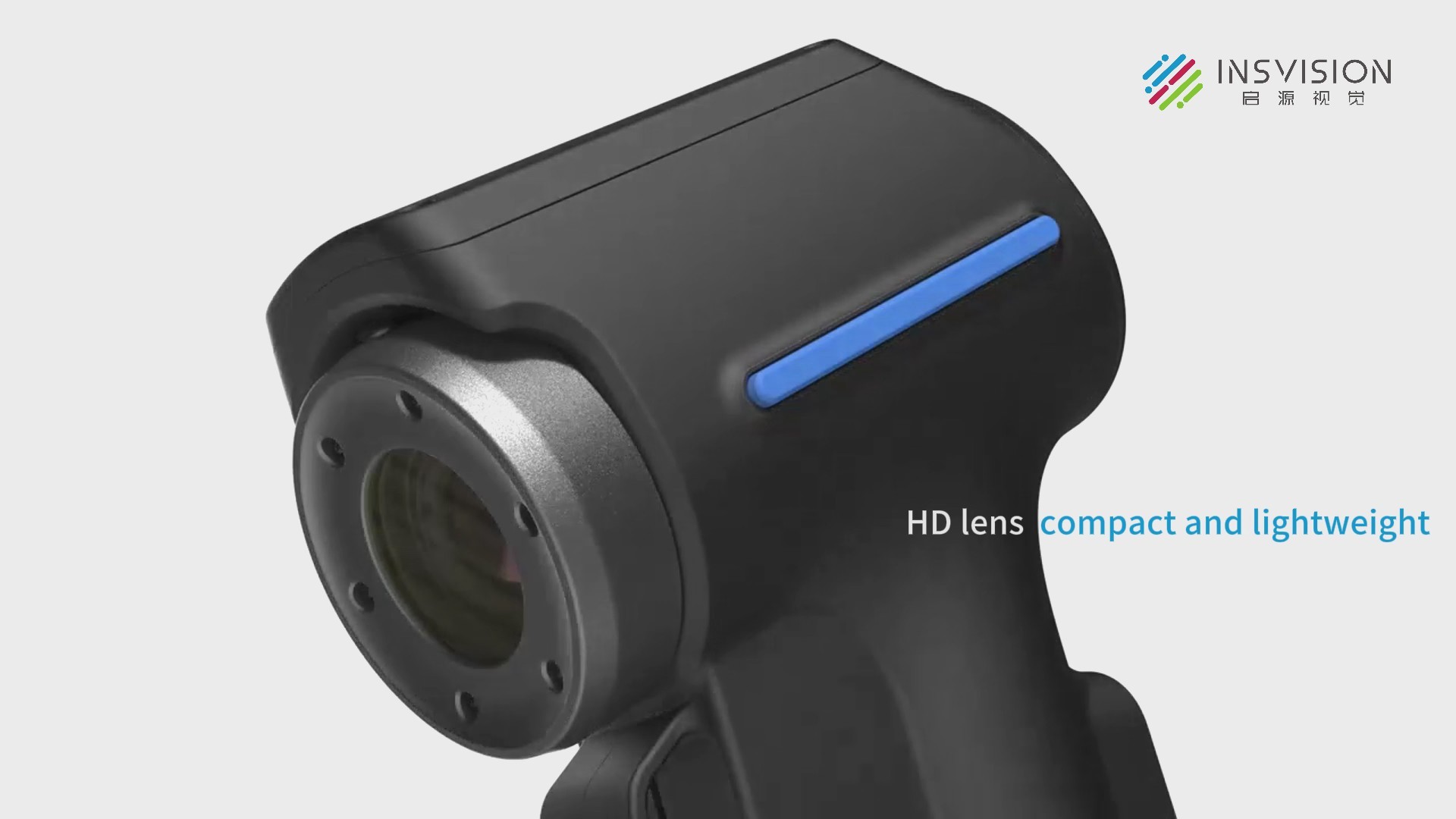

AlphaScan High-Precision 3D Scanner
Employing AI algorithms and real-time gridding technology to achieve precise 3D reconstruction.
Employing AI algorithms and real-time gridding technology to achieve precise 3D reconstruction.
Accuracy
up to 0.020 mm
Measurement rate
7,100,000 measurements/s
Scanning area
up to 650mm x 550mm
Volumetric accuracy
0.015 mm + 0.025 mm/m
Resolution
Up to 0.01 mm
Multiple scanning methods
High-speed scanning, precision scanning, deep-hole scanning
Resolution
up to 0.020 mm
Maximum scanning rate
7,100,000 measurements per second
Maximum scanning width
650mm x 550mm
Highest volumetric accuracy
0.015 mm + 0.025 mm/m
Resolution
up to 0.020 mm
Multiple scanning methods
High-speed scanning, precision scanning, deep-hole scanning
Technical Specifications
| Technical Specifications | ||
|---|---|---|
| Model | AlphaScan | AlphaScan Elite |
| High-Speed Scanning | 26 blue laser lines | 50 blue laser lines |
| Precision scanning | 7 blue laser lines | 7 blue laser lines |
| Deep-Hole Scanning | 1 single blue laser line | 1 single blue laser line |
| Accuracy | up to 0.020mm | up to 0.020mm |
| Measurement rate | 5,400,000 measurements/s | 7,100,000 measurements/s |
| scanning Area | up to 650mm × 550mm | up to 650mm × 550mm |
| Laser class | Class II (Eye-Safe) | Class II (Eye-Safe) |
| Resolution | up to 0.01mm | up to 0.01mm |
| Volumetric Accuracy | 0.015 mm + 0.035 mm/m (Working with photogrammetric scale bar: 0.015 mm + 0.025 mm/m) | 0.015 mm + 0.035 mm/m (Working with photogrammetric scale bar: 0.015 mm + 0.025 mm/m) |
| Working distance | 300mm (200mm Fine Mode) | 300mm (200mm Fine Mode) |
| Depth of field | 550mm | 550mm |
| Output formats | txt, stl, ply, etc. | txt, stl, ply, etc. |
| Operating temperature | -10°C to 40°C | -10°C to 40°C |
| Interface Type | USB 3.0 | USB 3.0 |
| Computer Requirements | System: Windows 10 or later, 64-bit; Graphics Card: NVIDIA RTX 4060 (with 8GB of VRAM); Processor: i7-13700H or higher; RAM: ≥32 GB | System: Windows 10 or later, 64-bit; Graphics Card: NVIDIA RTX 4060 (with 8GB of VRAM); Processor: i7-13700H or higher; RAM: ≥32 GB |
Relevant Materials
For a live product demonstration, scanning experience, and consultation with a quote, please contact customer service.
AlphaScan Product Manual
Product Applications
3D scanners empower industrial inspection, enabling high-precision dimension and defect analysis while boosting quality control efficiency.
3D scanners enable reverse engineering, allowing for the rapid creation of physical models and providing precise data support for product innovation.
